FTF3235B-A—Feather Touch® TRUE 3.0" Diameter Dual Speed Focuser, 3.5" Draw Tube Travel, and Brake
$800.00 – $1,510.00
Description

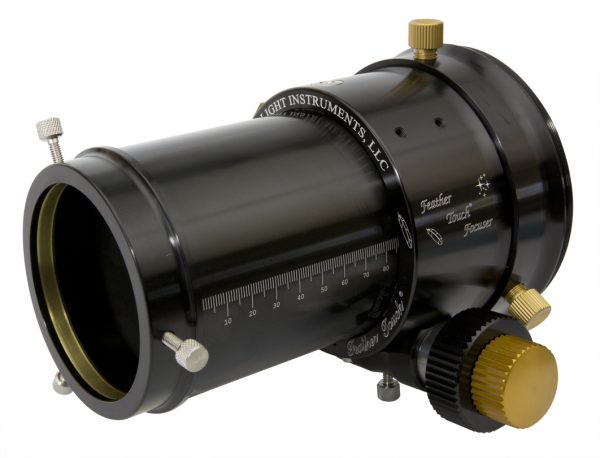

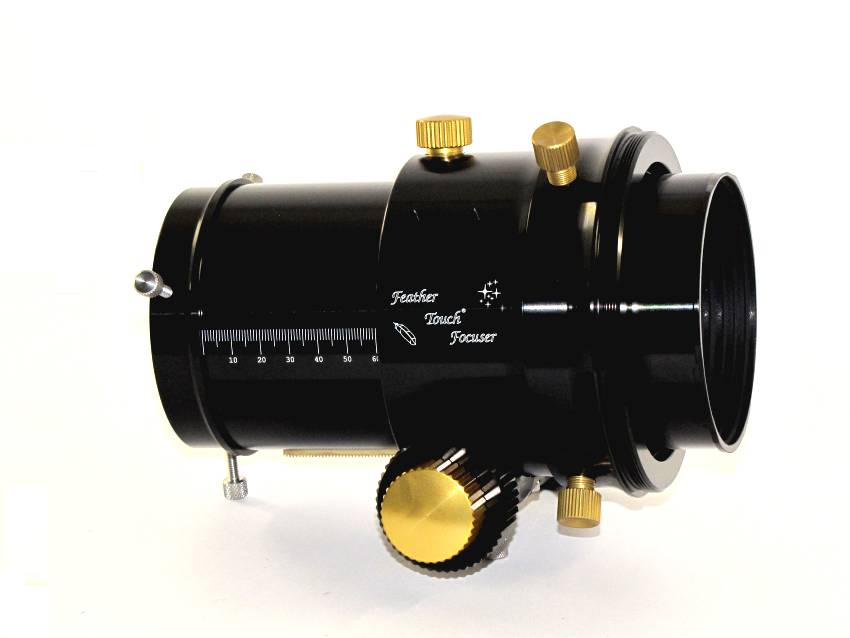

Feather Touch® TRUE 3.0″ Diameter – Dual Speed Telescope Focuser, 3.5″ Draw Tube Travel, and brake
This TRUE 3” focuser has the same design and style that you have come to love but over-sized to allow and accept 3” viewing accessories. The opening of the draw tube on the visual side of the focuser is greater than 3.0″ which allows the focuser to accept a 3.0″ viewing accessory.
The FTF3235B-A comes standard on the Explore Scientific ES152 Telescope
| Lifting Capacity | 15-17 Pounds |
| Draw Tube Thread | M86X1 |
| Draw Tube Travel | 3.5″/88.90MM |
| Thread on Entry (OTA | FRONT) Side of Draw Tube | M120x1 when using A32-3203-1 |
| Draw Tube Drive Mechanism | Rack/Pinion |
| Reduction Ratio | 10:1 |
| Finderscope hole thread dimension | 8-32 |
| Weight of focuser | 3.99 pounds including the standard adapter (sold separately) and 2″ compression ring end cap (sold separately) |
| Racked In from Mounting Face | 3.672″/93.27MM |
| Racked Out from Mounting Face | 7.368″/187.15MM |
Additional information
| Weight | 6 lbs |
|---|---|
| Adapter | [A32-3203-1] Standard Tube Adapter Ring, [A32-3203-ES102CF] Explore Scientific CF102/115 W/sliding dew shield, [A32-3203-ES127A] Explore Scientific 127/140 w/Carbon Fiber OTA and slide dew shield, [A32-3203-ES130A] Explore Scientific 127 w/Aluminum OTA and slide dew shield, [A32-3203-ES152] Explore Scientific ES152 with R32-2 Riser($170), Not Interested |
| End Cap | [EC32-3205-1] 2.0" Compression Ring End Cap, [EC32-3205-3CR] 3" Compression Ring End Cap, Not Interested |
| Finder Scope Bracket | Not Interested, FSB-CH-Bracket 2.5/3.0, FSB-CH-Bracket 3.5 |
